Features
1.Large application range,simple structure and convenient maintenance.
2.Large capacity and continuous work are very obvious.
3.Barrel lining and grinding media can apply various abrasive materials.
4.Installation and adjustment are very convenient and easy to be operated.


Principle

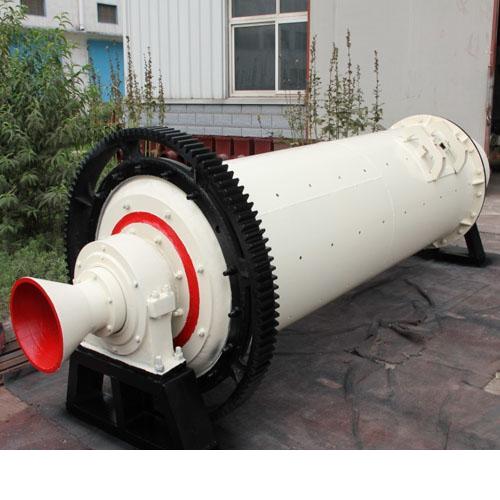

The ball mill is a horizontal rotating device transmitted by the outer gear. The material are transferred to the grinding chamber through the quill shaft uniformly.   There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Model	The  chamber  speed (r/min)	Ball  Load (t)	Feed  In  size (mm)	Feed  out  size (mm)	Output (t/h)	Motor		Weight  (T)
						Type	Power     ( kw)
§¶ 900 ¡Á1800	38	1.5	¡Ü 20	0.075-0.89	0.65-2	Y2001L-6	18.5	3.6
§¶900 ¡Á3000	38	2.6	¡Ü 20	0.075-0.89	1.1-3.5	Y200L2-6	22	4.6
§¶1200 ¡Á2400	35	3.5	¡Ü 25	0.075-0.6	1.5-4.8	Y250M-6	37	11
§¶1200 ¡Á3000	35	5	¡Ü 25	0.075-0.4	1.6-5	Y280M-6	45	13.8
§¶1200 ¡Á4500	35	75	¡Ü 25	0.075-0.4	1.6-5.8	Y280M-6	55	14
§¶1500 ¡Á3000	27	8	¡Ü 25	0.075-0.4	2-5	Y315M-8	75	15
§¶1500 ¡Á4500	27	12	¡Ü 25	0.075-0.4	3-6	JR125-8	95	18
§¶1500 ¡Á5700	27	15	¡Ü 25	0.075-0.4	3.5-6	JR127-8	130	21.7
§¶1830 ¡Á3000	24	12	¡Ü 25	0.075-0.4	4-10	JR128-8	185	28
§¶1830 ¡Á6400	24	23	¡Ü 25	0.075-0.4	6.5-15	JR138-8	210	34
§¶1830 ¡Á7000	24	25	¡Ü 25	0.075-0.4	7.5-17	JR137-8	245	36
§¶2100 ¡Á6500	21	31	¡Ü 25	0.075-0.4	14-26	JR1-144-8	355	52.8
§¶2200 ¡Á7000	21	37.6	¡Ü 25	0.075-0.4	15-28	JR1-145-8	400	56
§¶2400 ¡Á7000	19.1	45	¡Ü 25	0.075-0.4	16-30	JRL15-8	475	62.8
§¶2700 ¡Á7000	18	61.8	¡Ü 25	0.075-0.4	18-35	JR1-154-8	710	73
