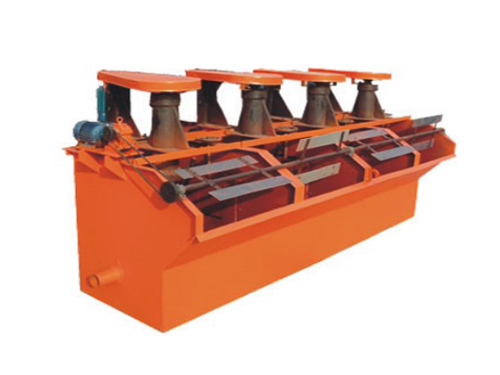

Flotation Machine



Features
1. Large air-absorption capacity
2. Low energy consumption
3. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow.
4. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent.
5. There is self-control device on the surface of mineral slurry, so it is easy to adjust it.
6. The impeller has backward inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.




Principle

Flotation machine is applicable for the separation of nonferrous metal and ferrous metal. It is also used for separating nonmetal, such as fluorite and talcum.Through V belt transmission, which brings centrifugal effect to form the negative pressure. On the one hand, the flotation machine inhales sufficient air to mix with ore slurry; On the other hand it stirs ore slurry and mix with medication to form the mineralized froth. By adjusting the height of flashboard to control the liquid level and make the useful froth scraped by loam board.


Parameter


Model

Single slot effective volume(m3)

Impeller diameter(mm)

Capacity(m3/min)

Impeller speed(r/min)

Scraper speed(r/min)

Motor

Dimension(mm)

Single slot weight (t)

Type

Power(kw)

XJK?0.13

0.13

200

0.05-0.16

600

17.5

Y90L-4

1.5

2100*865*900

0.35

XJK?0.23

0.23

250

0.12-0.28

500

17.5

Y90L-4

1.5

2625*1130*1290

0.41

XJK?0.35

0.35

300

0.15-0.5

470

17.5

Y100L1-4

2.2

3012*1350*1320

0.45

XJK?0.62

0.62

350

0.3-0.9

400

16

Y100L2-4

3

3800*1500*1550

0.85

XJK?1.1

1.1

500

0.6-1. 6

330

26

Y132M-6

5.5

4680*1820*1950

1.4

XJK?2.8

2.8

600

1.5-3.5

280

26

Y160L-6

11

7750*2600*2700

2.43

 Please call for more information. Contact page.
