Features
1.Reasonable structure, easy installation
2.Less occupation square, stable ore dressing
3.Clear classification, big processing capacity
4.High efficiency, enrichment ration
5.High recovery rate and smooth operation
6.Wide adaptability to feeding materials and the concentration
Principle

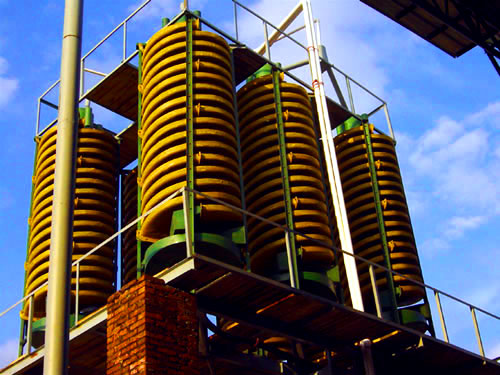

The sand pulp is first send to the two inlets of the spiral chute. After added water for appropriate pulp density, the pulp swirls down and generates a centrifugal force which separates the ores and sands. The ore concentrate flows into the hopper and is collected through a pipeline. The tailings are discharged by a sand pulp. Thus, the whole mineral process is finished.
Parameter
|
Model
|
5LL-1200
|
5LL-900
|
5LL-600
|
5LL-400
|
|
Outsider Diameter(mm)
|
1200
|
900
|
600
|
400
|
|
Pitch (mm)
|
900/720/540
|
675/540/405
|
450/360/27
|
240/180
|
|
Pitch/diameter rate
|
0.75/0.6/0.45
|
0.75/0.6/0.45
|
0.75/0.6/0.45
|
0.6/0.45
|
|
Transverse Tilt Angle(gradient / °)
|
9°
|
9°
|
9°
|
9°
|
|
Max Spiral Head NO. per set
|
4
|
4
|
4
|
4
|
|
Feed-in Size (mm)
|
0.3-0.03
|
0.3-0.03
|
0.2-0.02
|
0.2-0.02
|
|
Feed-in Material Concentration (%0
|
25-55
|
25-55
|
25-55
|
25-55
|
|
Output Capacity (t/h)
|
4-6
|
2-3
|
0.8-1.2
|
0.15-0.2
|
|
Dimensions (L*W*H) (mm)
|
1360x1360x5230
|
1060x1060x4000
|
700x700x2600
|
460x460x1500
|
|
Weight(kg)
|
600
|
400
|
150
|
50
|
