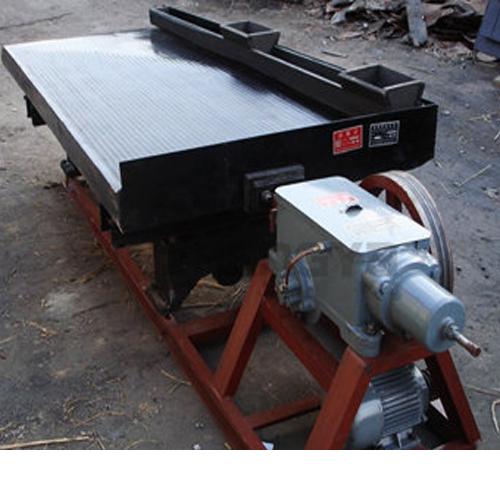

Principle

The table dressing process carries on the complex inclined bed surface , and the ore grains are sent in from the bed surface for the ore trough, simultaneously it supplies crosswise wash for the water trough, thus the ore grains laminate surface and according to the proportion and granularity, and make the longitudinal motion and transversal motion along the bed surface, in function of the gravity, the crosswise running water momentum, and the inertia and friction force from the reciprocation symmetry movement of bed surface. Therefore, the proportion and the granularity different ore grain assumes gradually along respective heading by A on the one hand to B on the other hand fan-shaped flows off, separately discharges from the ore concentrate end and the debris side different area, finally is divided into the ore concentrate, the middling and the debris.

Parameter

Name		Unit	Coarse Sand Table	Fine Sand Table	Slime Table
Table Dimension	Length	MM	4450	4450	4450
	Geraing Side Wide	MM	1855	1855	1855
	Concentrate Side Wide	MM	1546	1546	1546
Max Feed-in Material Size		MM	2	0.5	0.15
Feed-in Material Size		T/d	30-60	10-20	15-25
Feed-in Material Concentration		%	25-30	20-25	15-25
Travel length		MM	16-22	11-16	8-16
Frequency		F	15-48	48-53	50-57
Water for Cleaning Table		T/d	80-150	30-60	10-17
Transverse Gradient		Transverse Gradient	2.5-4.5	1.5-3.5	1-2
Longitudinal Gradient		%	1.4	0.92	----
Table Final Angle		Transverse Gradient	32-42	40	42
Dressing Square		----	7.6	7.6	7.6
Table Length breath Ratio		----	2.6	2.6	2.6
Power		KW	1.1	1.1	1.1
